Mounting system for flat roofs

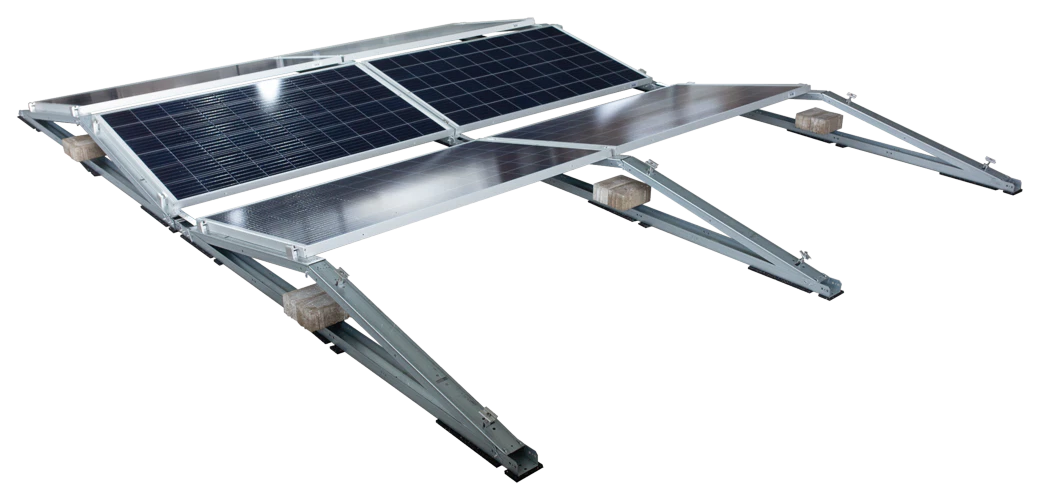

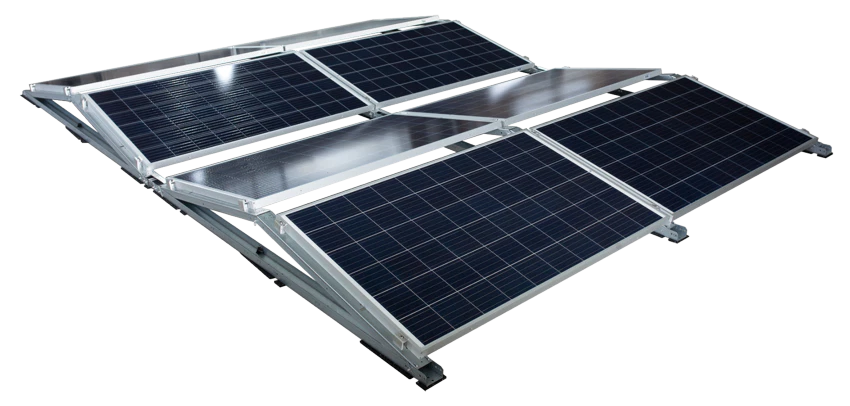

TRITON EAST WESTThe TRITON flat roof mounting system is an aerodynamic, penetration-free PV mounting system for flat roofs of all types with a pressure-resistant substrate (foil, bitumen, gravel, green or trapezoidal sheet metal roof). The mounting system can be realized as an east/west elevation with 12° inclination as well as a south elevation with 12° or 15° inclination.
Installation is carried out for roof pitches ≤ 3° without roof penetration, only with weighting. For roofs with a pitch of up to 10°, the TRITON flat roof system can be installed with mechanical anti-slip protection. To ensure a low-ballast overall system, the TRITON flat roof system was not only tested for stability in a WtG-approved boundary layer wind tunnel, but also aerodynamically optimized. This means that even roofs with a low load reserve can be used sensibly for photovoltaics.
A lightning current-capable version of the TRITON system in accordance with DIN EN 62305-3 is also available as an option.

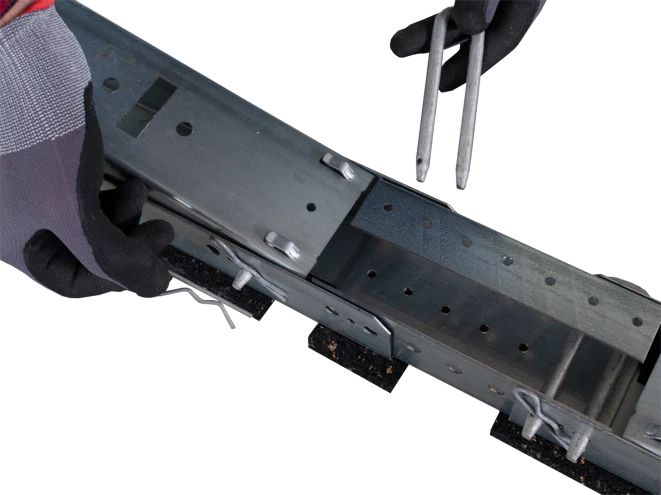

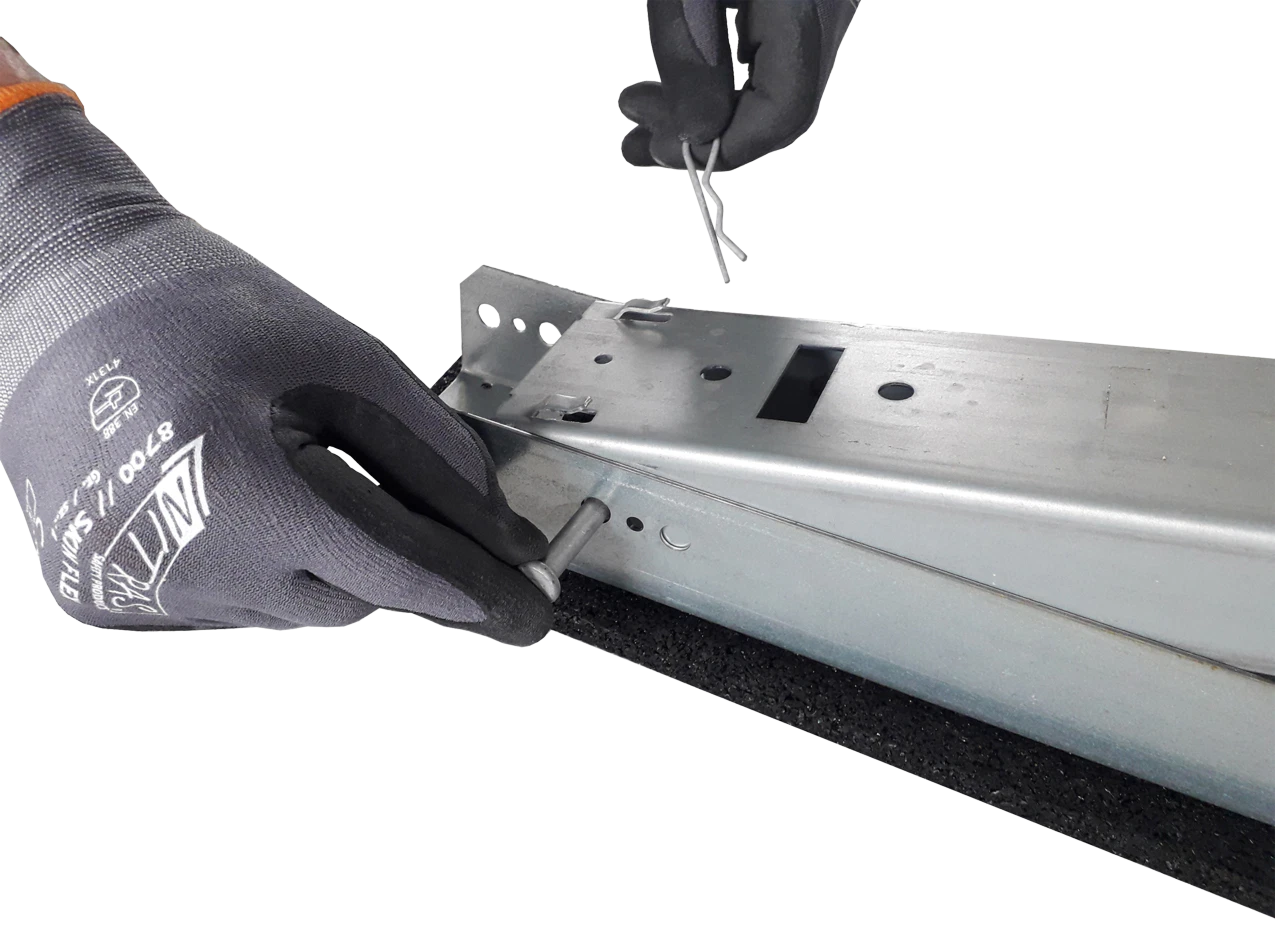

The high degree of pre-assembly and the unique, tool-free assembly with plug-in bolt connections are outstanding. The chipless installation ensures that the roof cladding remains intact. Thanks to the pre-configuration of the TRITON system, no time-consuming measuring and adjustment work is required.
| Variant | HZ (up to 1,060 mm module width) |
XL (from 1,061 module width) |
| Elevation length | 2,285 mm | 2,461 mm |
| Row foot spacing | 2,357 mm | 2,533 mm |
| Shading distance | – | – |
| Distance module-OK – roof cladding | approx. 102 mm | approx. 102 mm |
| Max. Overall height | 287 mm | 306 mm |
| Own weight | approx. 3.4 kg/m² | approx. 3.4 kg/m² |
TRITON
ist in der griechischen Mythologie ein Meeresgott, der Seefahrer schützt in dem er unter anderem Wellen beruhigen kann.
Das T.Werk TRITON Flachdachsystem hat gleich mehrfach eine schützende Wirkung: Mit der Vormontage entfallen Zerspanungsarbeiten auf dem Dach, die die Dachhaut verletzen könnten. TRITON kann als natürlicher Bestandteil der Blitzschutzanlage fungieren und nicht zuletzt schützt TRITON die Wirtschaftlichkeit der PV-Installation durch optimale Aufstellungsmöglichkeiten für einen maximierten Ertrag.
Application area
alle Flachdächer wie Folie-, Bitumen, Kies-, Grün- oder Trapezblechdächer
System information
Inclination: 12
Weight: approx. 3.4 kg/m²
Mounting
outstanding, fast assembly due to innovative plug-in system

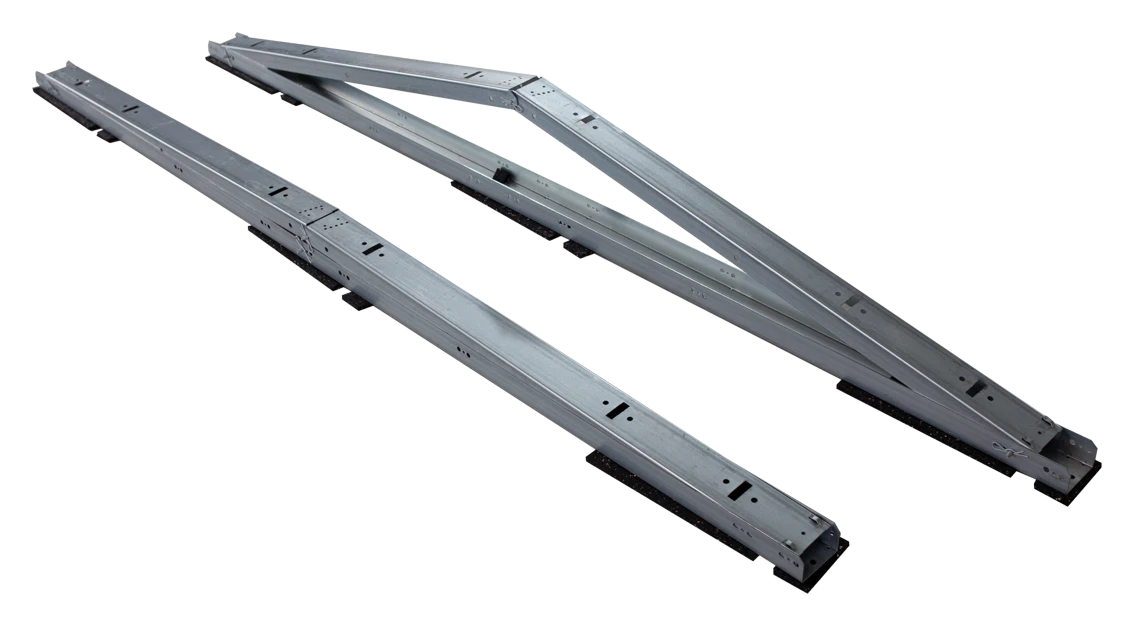

Already preassembled
Standsicherheit
spezifische Windsogberechnungen
Lastannahme nach Eurocode 1

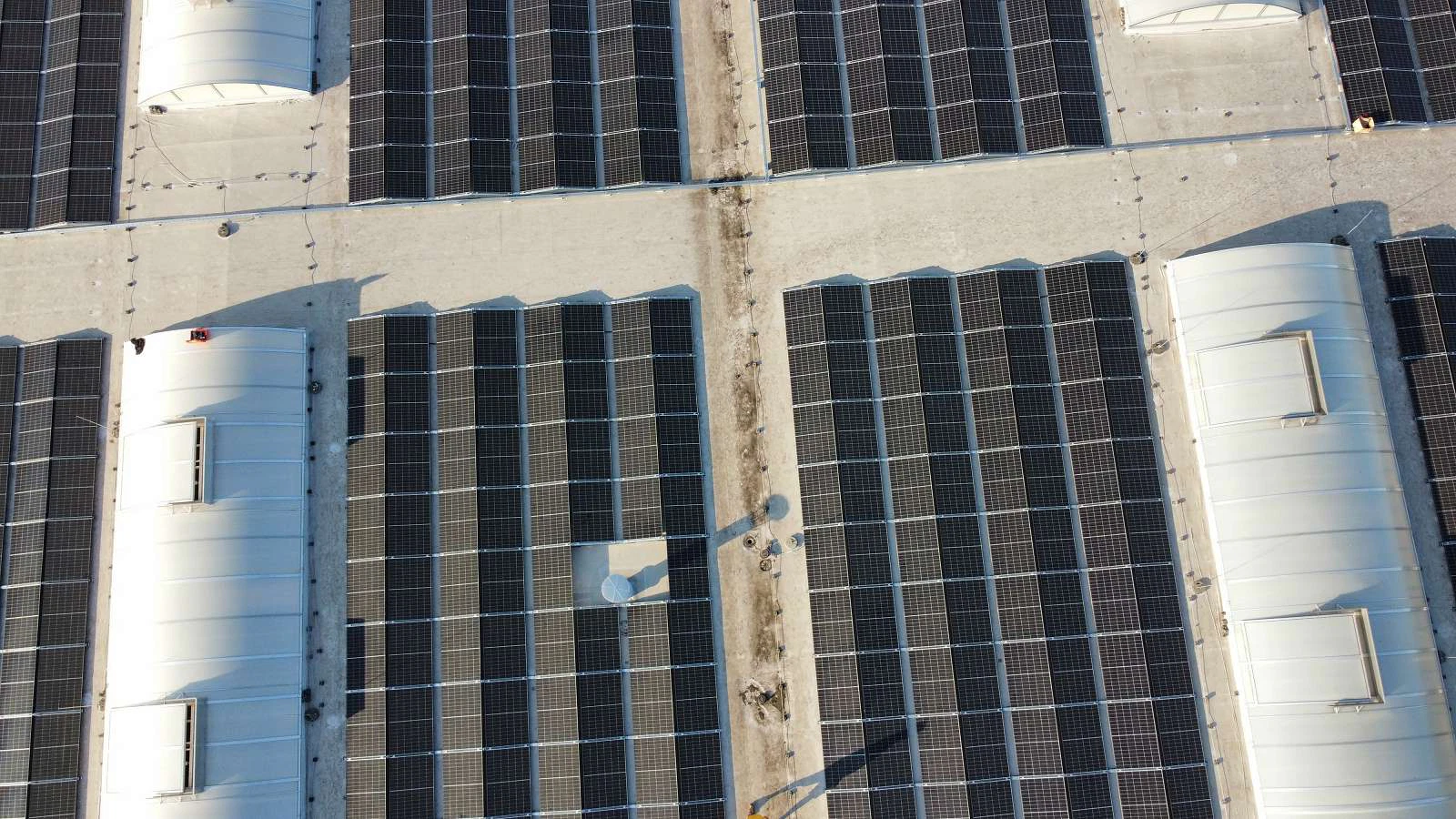

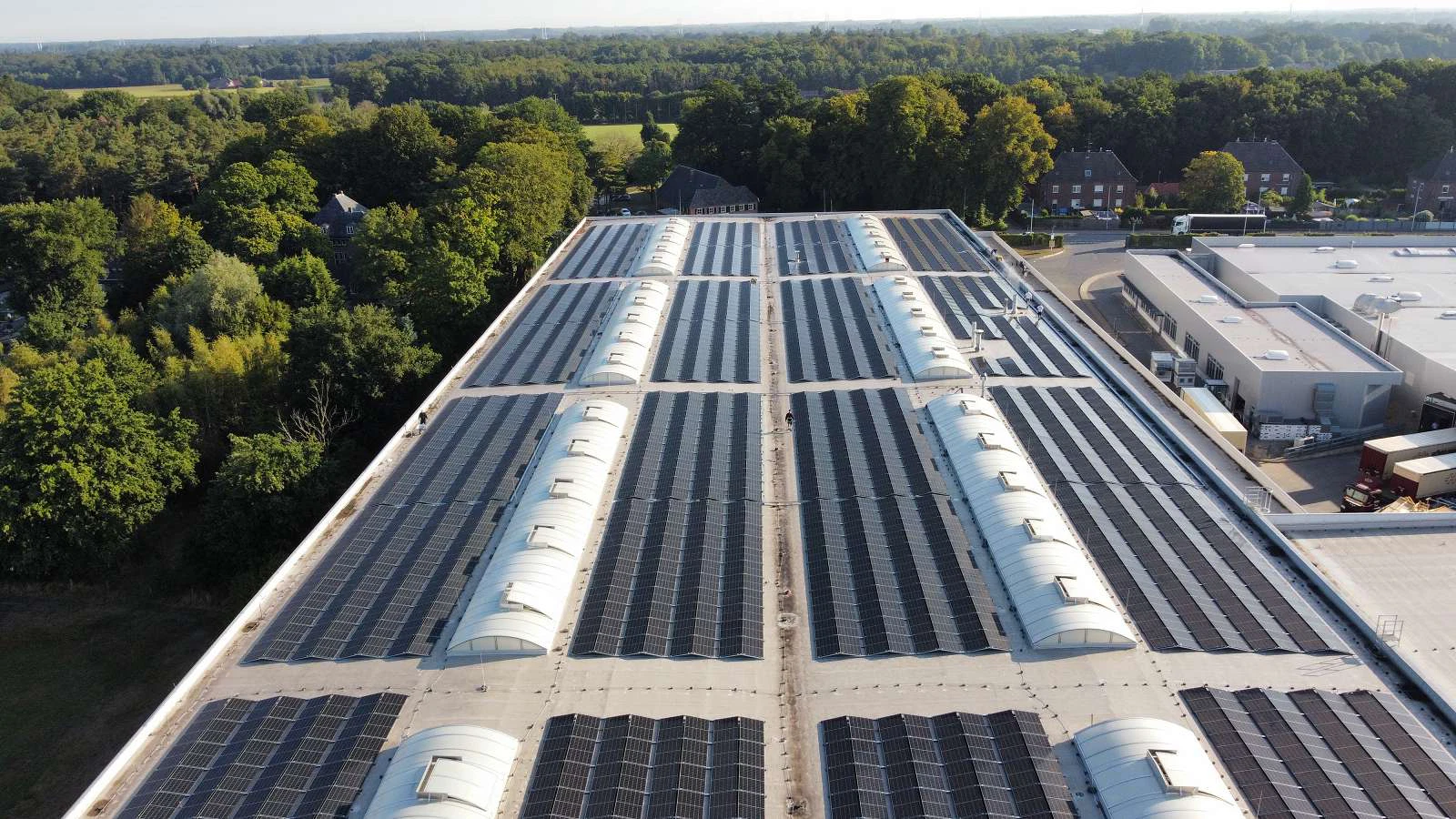

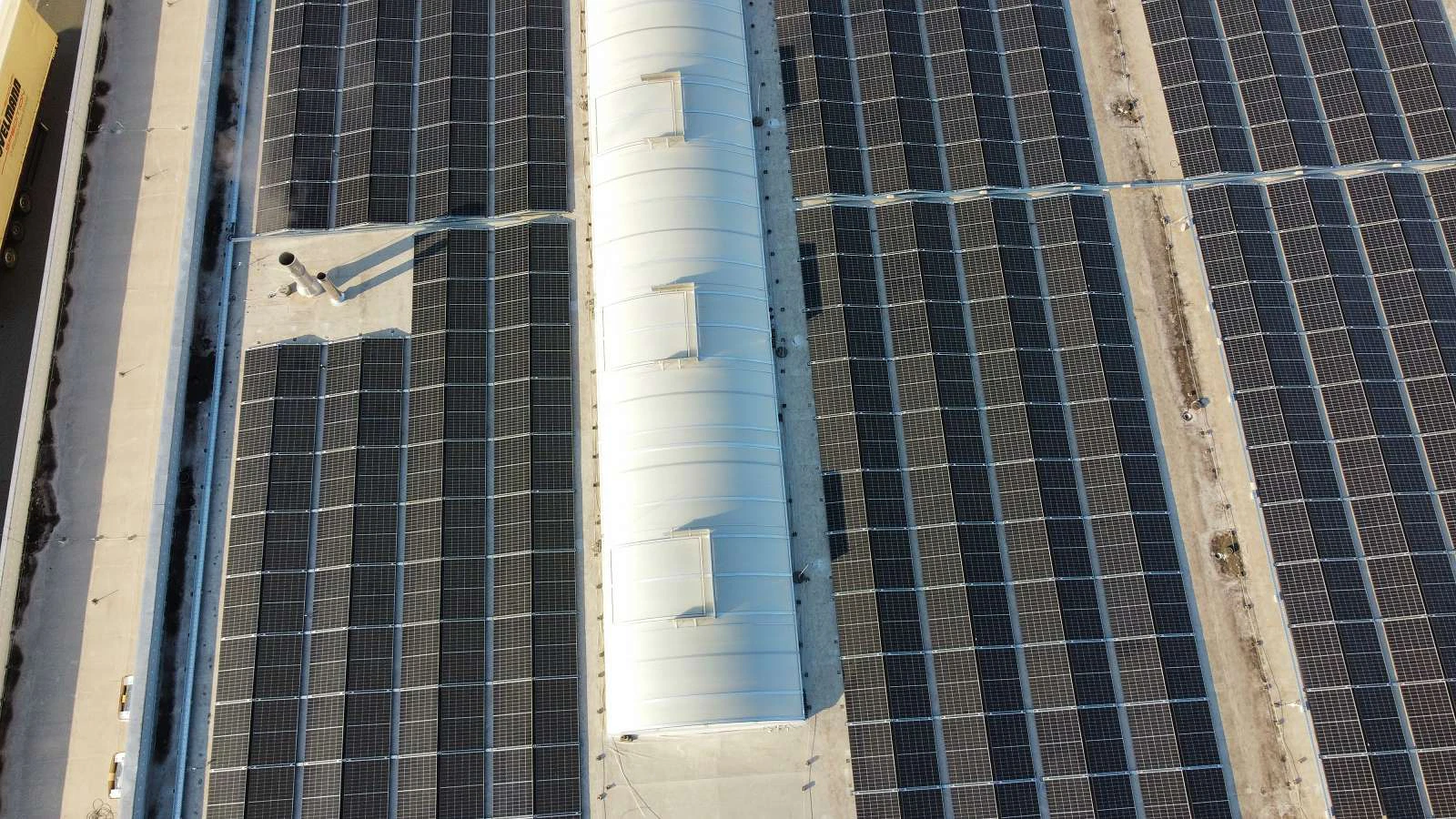

Triton Ost-West Projekt mit knapp 1,5 MWp
Standort: Gendringer Str. 85, 46419 Isselburg-Anholt
Module: 3.656 * SolarFabrik Mono S4 410Wp = 1.498,96 kWp
UK: TRITON Ost-West 12°
Wechselrichter: 13 * SMA STP110 (CORE2)
