PV mounting system for flat roofs with gravel
TRITON is installed without penetration, without removing
or shifting the gravel layer
A gravel covering protects the flat roof: wind suction forces have less of an attack surface, heat and UV radiation lose their effect on the roof covering. Gravel transports moisture away very well and prevents large accumulations of water. Gravel flat roofs also offer greater fire protection, especially against radiant heat and flying sparks.
To support the weight of the stones, gravel roofs have a greater load reserve than other flat roofs. These are usually reinforced concrete roofs. When installing photovoltaics, it is important to guarantee the integrity of the roof cladding and at the same time ensure that the substructure is protected from damage by the gravel.
Installation without roof penetration with ballasting
Quick and easy installation without moving thegravellayer
Optimum use of space with a combination of east-west and south elevation
Optionally with integrated, certified fallsafety device

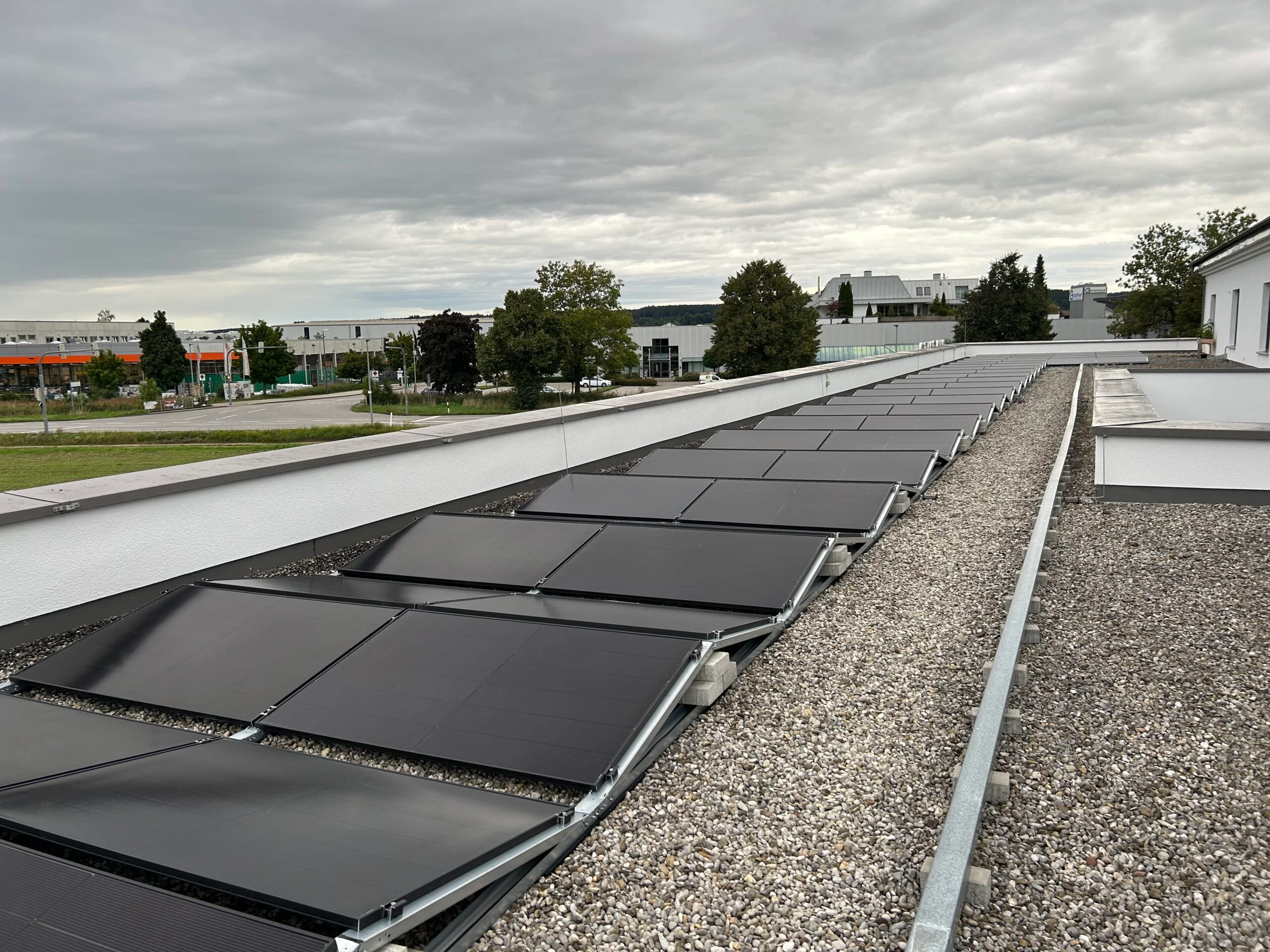

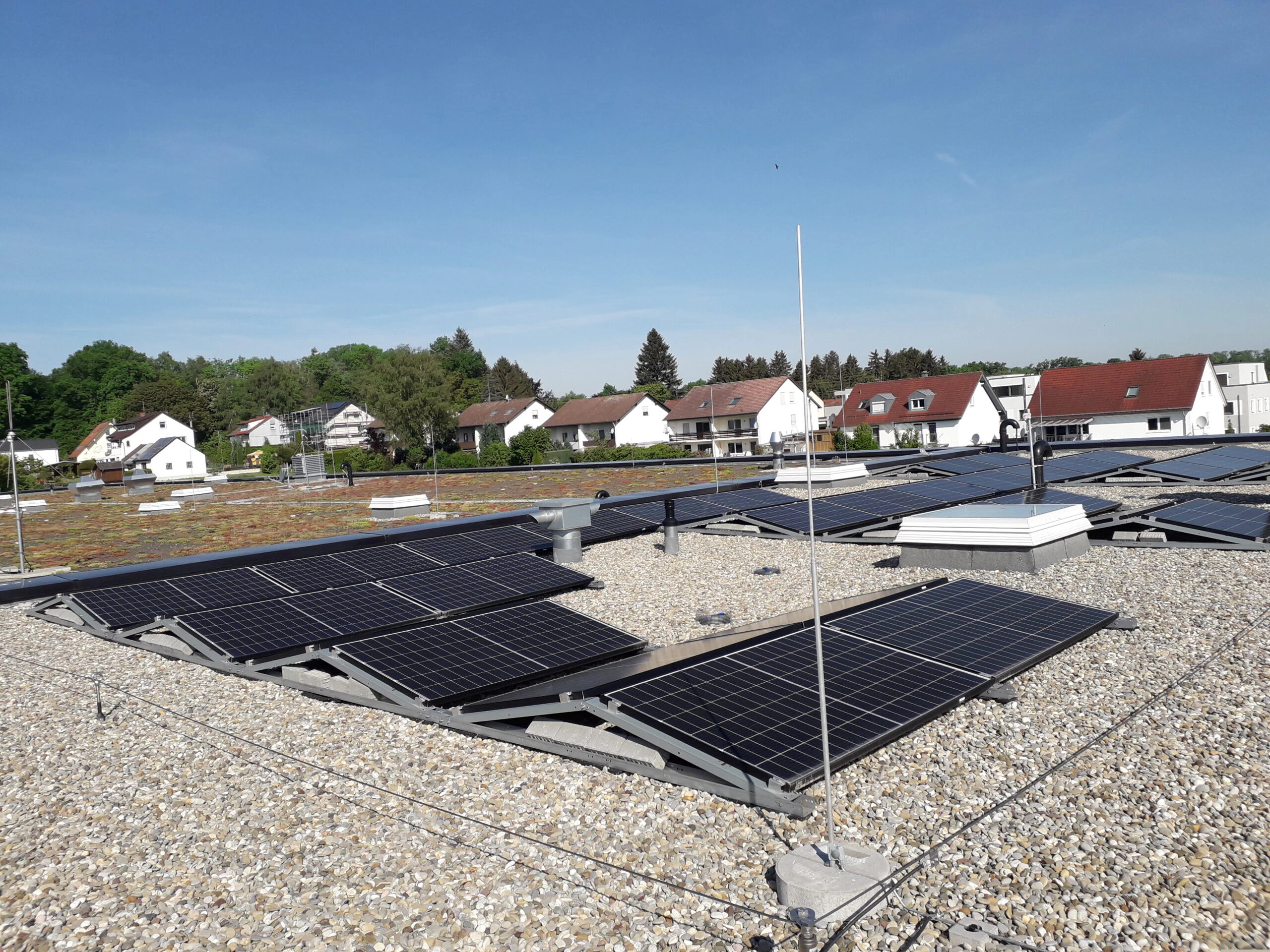

TRITON: PV installation on flat roofs with gravel.
The TRITON mounting system is particularly suitable for installing photovoltaics on flat roofs with gravel. It is mounted on the gravel layer without penetrating it and without removing or moving it. Thanks to the innovative plug-in bolt system, installation is carried out without tools; the pre-assembled rails are unfolded and fixed in place with plug-in bolts. There is no need for time-consuming measuring and adjustment work. TRITON therefore saves a lot of time when installing on a flat gravel roof.
The TRITON has been tested for stability and aerodynamically optimized in a WtG-approved limit speed channel to minimize ballast. Ballasting is carried out with standard construction material. Team T.Werk creates a project-specific ballasting plan.
Are you interested in the TRITON PV mounting system for flat roofs with gravel? Please contact us!
Planning | Design | Consulting
We are happy to support you in your project planning with our expertise in the following areas:
- Consulting
- On site inspection
- Mounting variants
- Create plans & drawings
- Module assignment
- Shading calculation
- String planning
Statics report
We offer additional services for our photovoltaic fastenings on flat gravel roofs:
- Statics report
- Wind suction calculation
- Snow load expertise
- Acceptance certificate
- Damage survey
Assembly & erection
We bring you together with strong partners in photovoltaics. Our experts are very familiar with our PV mounting system for flat roofs with gravel fill.
- Mounting the TRITON elevation for gravel-covered flat roofs
- Module assembly
- DC mounting
- Inverter installation
Individual assembly solutions
With us you can choose from a wide range of products. Open spaces, landfills, foil roofs, green roofs, trapezoidal roofs, tile roofs, seam roofs, facade… We have a solution for everything. If something doesn’t fit, it will be made to fit.
Quick assembly
Our mounting systems are child’s play to assemble and require virtually no training time. With our products, you become more efficient on the construction site and can use your capacities wisely. Because time is your most valuable asset.
High quality, safe & inexpensive
Support in any matter
We not only provide you with sophisticated assembly systems, but also with services tailored to your individual needs so that you can concentrate on your core processes. This is where we contribute our many years of experience and our professional network.
Quality & Effectiveness
12 years product warranty
Safety is our top priority. Our systems are put through their paces. Our flat roof mounting system TRITON was tested, for example, in the wind tunnel at the I.F.I in Aachen. Upon request, you will receive project-specific, verifiable structural calculations. You have a 12-year guarantee on our products.
Your added value with TRITON for flat roof gravel.
Added value through gravel on flat roofs
- Gravel reduces the surface area exposed to wind suction forces
- Protection of the roof covering against heat and UV radiation
- Very good moisture removal, prevents large amounts of water from accumulating
- High fire protection, especially against radiant heat and flying sparks
Added value TRITON PV mounting system
- Roof skin-friendly, penetration-free PV mounting system for photovoltaics on gravel roofs
- Installation on the gravel layer without removing or moving it
- Fast and efficient installation thanks to a high degree of pre-assembly
- Innovative plug-in bolt system for tool-free and chipless assembly
- No need for time-consuming measuring and adjustment work
- Tested for stability and aerodynamically optimized
Added value through technology
- Increasing the performance of the modules through rear ventilation
- Optimum use of space through combination of east/west and south elevation
- Flexible response to interfering contours such as skylights, chimneys, etc.
- Modular components for maximum flexibility
- Low ballast through aerodynamic optimization in a WtG-approved speed limit channel
- Ballasting with standard building material
Do you have questions about the PV mounting system for gravel-covered flat roofs? Please write to us.
Are you interested in TRITON for gravel roofs or are you planning a current project? We will be happy to support you.
