PV mounting system for parking garage facades
Photovoltaics on
parking garage facades
The innovative clamping bracket system enables
the standardized installation of PV on facades
of parking lots with IPE support structures.
Checklists & brochures
request now without obligation
Frequently asked questions
Installing photovoltaics directly on parking garages offers operators and local authorities several advantages. In combination with a charging station infrastructure, the energy is used directly where it is really needed: To charge the vehicles using the parking garage. In addition, the self-generated electricity reduces the maintenance costs of the parking garage, for example for lighting or monitoring concepts.
Whether as a supplement or alternative to photovoltaics on the roof, installation on the parking garage façade is a good option. The vertical installation of the modules has the advantage that energy is reliably generated at times when there is less sunlight, i.e. in the morning, in the evening or in winter. This means that vehicles can also charge self-generated electricity at these times.
Sustainable energy generation for direct use in the parking garage
Innovative, standardized clamping bracket system for multi-storey parking lots with double T-beams
Enhancing the aesthetic appearance of the façade
Quick and easy installation with proven ZELOS profiles

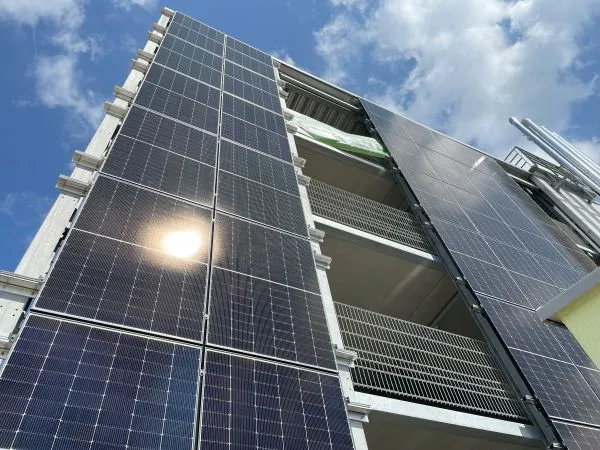

PV mounting system for parking garage facades.
The assembly system from T.Werk for parking garage facades is quick and easy to install. Thanks to an innovative Clamping clamp system it does not require drilling or screws. With the Clamping claws the substructure is clamped to the IPE beams. The system can be used as standard in all multi-storey parking lots built with IPE beams (double T-beams).
The photovoltaic system is then installed using the tried-and-tested ZELOS profiles and CHRONOS clamps, which are also used in the roof area. This creates T.Werk The high degree of pre-assembly and modular design of all components also saves time on site. The high degree of pre-assembly and the modular design of all components also saves time on the construction site.
Do you have questions about the PV mounting system for parking garage facades? Write to us!

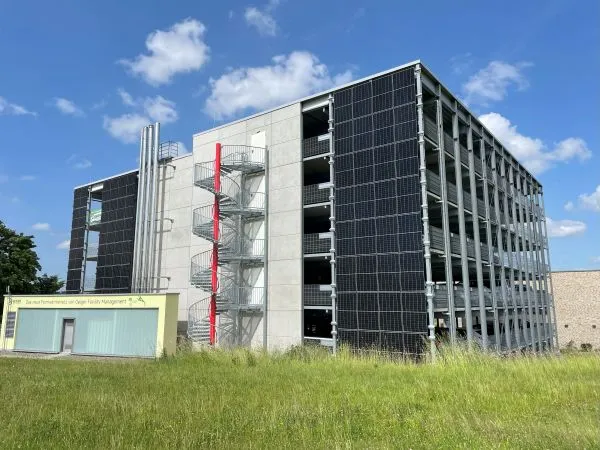

Photovoltaics on parking garage facades.
Advantages of steel systems for parking garages
- Elevated steel garages are cheaper and quicker to build
- Prefabricated steel elements reduce construction time and costs
- Smaller space utilization, lower operating costs due to low maintenance, cleaning and lighting costs
- Wide clamping widths facilitate the maneuvering of vehicles
- Recycled steel reduces the CO² footprint
Advantages of the T.Werk PV mounting system
- Innovative clamping bracket system for standardized PV installation on parking garages with IPE beams
- Proven ZELOS profiles and CHRONOS clamps for maximum flexibility
- Modular design of all components used
- High degree of pre-assembly for quick and easy installation
- Clean cable routing
Added value through PV on parking garage facades
- Energy generation in otherwise unused areas of parking garages
- As an alternative and/or supplement to photovoltaics on the roof
- Installation during construction or as a retrofit with little additional effort
- Improving the energy balance of the Parkhaus
- Image boost for operator or municipality in the area of sustainability
Planning | Design | Consulting
We are happy to support you in your project planning with our expertise in the following areas:
- Consulting
- On site inspection
- Mounting variants
- Create plans & drawings
- Module assignment
- Shading calculation
- String planning
Statics | wind suction report
Just as for rooftop and ground-mounted systems and agri-PV, we also support you with various services for a photovoltaic system for parking garage facades.
- Statics report
- Wind suction calculation
- Acceptance certificate
- Damage survey
Assembly & erection
We bring you together with strong partners in photovoltaics. Our experts are very familiar with our substructure for façades. We support you with:
- Module assembly
- Site equipment
- DC mounting
- Refurbishment
Individual assembly solutions
With us you can choose from a wide range of products. Open spaces, landfills, foil roofs, green roofs, trapezoidal roofs, tile roofs, seam roofs, facade… We have a solution for everything. If something doesn’t fit, it will be made to fit.
Quick assembly
Our mounting systems are child’s play to assemble and require virtually no training time. With our products, you become more efficient on the construction site and can use your capacities wisely. Because time is your most valuable asset.
High quality, safe & inexpensive
Support in any matter
We not only provide you with sophisticated assembly systems, but also with services tailored to your individual needs so that you can concentrate on your core processes. This is where we contribute our many years of experience and our professional network.
Quality & Effectiveness
12 years product warranty
Safety is our top priority. Our systems are put through their paces. Our flat roof mounting system TRITON was tested, for example, in the wind tunnel at the I.F.I in Aachen. Upon request, you will receive project-specific, verifiable structural calculations. You have a 12-year guarantee on our products.
Are you planning photovoltaics on a parking garage façade and looking for a reliable partner for the substructure? Contact us and our experts will get back to you as soon as possible!
