PV mounting system for pitched roofs of all types
PV substructure
for pitched roofs
With the ZELOS mounting system, photovoltaics
can be mounted quickly and cost-effectively on pitched roofs with
different coverings.
Installing a photovoltaic system on a pitched roof is an investment that pays off in many ways for property owners. Energy is generated sustainably on your own building, which flows directly into your own needs, making you independent of rising electricity costs and fossil fuels. At the same time, the value of the building and its energy efficiency are increased.
When installing photovoltaics on pitched roofs, choosing the right substructure is crucial for solar installers. Ideally, the substructure should be suitable for any type of roofing, quick to install and economical to purchase. If the system also has a modular structure, solar installers achieve maximum flexibility.
Maximum flexibility thanks to variable roof hooks and different spans
Simple installation on all roof coverings including individual adjustments
Modular clamp sets with innovative, quick-fit click system
Customized special solutions for individual project requirements
ZELOS. Flexible PV installation on all pitched roofs.
ZELOS is the versatile mounting system for installing photovoltaics on pitched roofs. Depending on the roofing, the connection is made either with hanger bolts, roof hooks or clamps. ZELOS is particularly impressive due to its flexible application options, which enable individual adaptation to the respective local conditions and the various pitched roofs.

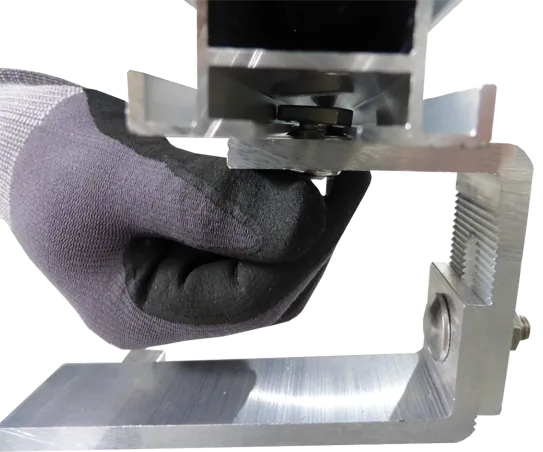

With four different standard lengths and individual special lengths, the ZELOS substructure is suitable for almost all span widths. The ZELOS roof hook guarantees easy installation on the roof thanks to its vertical and horizontal adjustment options.

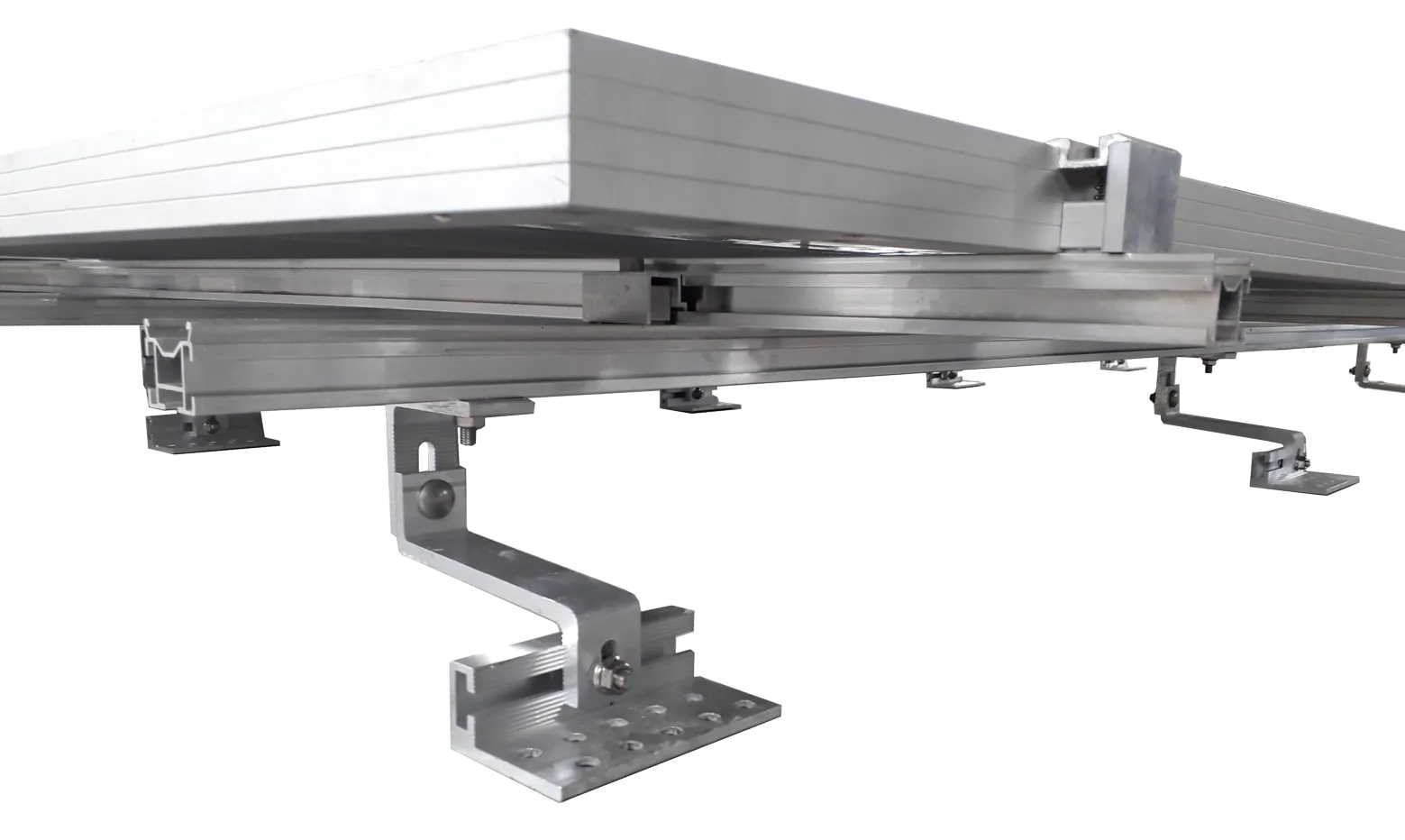

With ZELOS, the modules can be mounted parallel to the roof, both transversely and vertically, depending on requirements. The standard system structure is single-layer, but can also be realized as a two-layer cross-bond.
ZELOS. LV text at ausschreiben.de.
Do you have questions about the ZELOS PV mounting system for pitched roofs? Please write to us!
Application area
Can be used on all sloped roofs
System information
Weight: 0.79 kg/m
Rail length: 2.38 m,
3.53 m or 5.85 m
Special solutions possible
Mounting
single-ply or two-ply cross-bonded
Stability
Triple roof hook adjustable in two directions
Universal profile connection

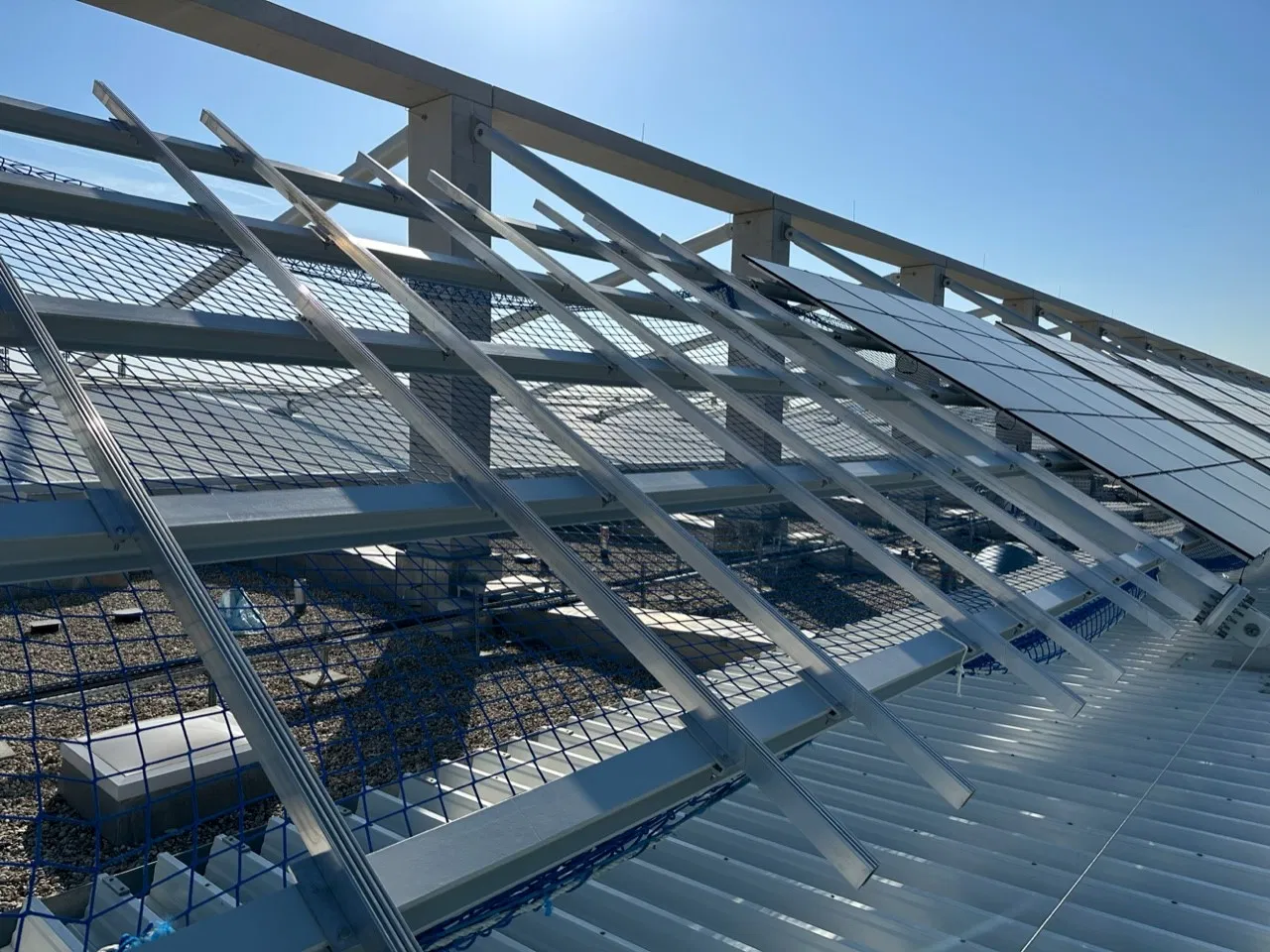

ZELOS. Ideal for special solutions.
Thanks to its flexibility and versatility, the ZELOS substructure is particularly suitable for individual special solutions. This means that photovoltaics can also be installed on surfaces where conventional mounting is difficult to implement.
Special applications are developed by experienced designers at T.Werk in Burgau. They adapt the proven PV mounting systems to the individual circumstances. For example, in the case of special roof shapes, confined areas or special architectural requirements, it can make sense to develop a special solution.
You can find an overview of our special solutions, including reference projects, here:
Individual assembly solutions
With us you can choose from a wide range of products. Open spaces, landfills, foil roofs, green roofs, trapezoidal roofs, tile roofs, seam roofs, facade… We have a solution for everything. If something doesn’t fit, it will be made to fit.
Quick assembly
Our mounting systems are child’s play to assemble and require virtually no training time. With our products, you become more efficient on the construction site and can use your capacities wisely. Because time is your most valuable asset.
High quality, safe & inexpensive
Support in any matter
We not only provide you with sophisticated assembly systems, but also with services tailored to your individual needs so that you can concentrate on your core processes. This is where we contribute our many years of experience and our professional network.
Quality & Effectiveness
12 years product warranty
Safety is our top priority. Our systems are put through their paces. Our flat roof mounting system TRITON was tested, for example, in the wind tunnel at the I.F.I in Aachen. Upon request, you will receive project-specific, verifiable structural calculations. You have a 12-year guarantee on our products.
Are you planning a PV project on a pitched roof? Contact us, our experts will get back to you as soon as possible!
