Photovoltaic flat roof mounting system
TRITON SOUTH & TRITON EAST WESTThe TRITON PV flat roof mounting system is an aerodynamic, penetration-free PV mounting system for flat roofs of all types with a pressure-resistant substrate (foil, bitumen, gravel, green or trapezoidal sheet metal roof).
The mounting system can be realized as an east/west elevation with 12° inclination as well as a south elevation with 12° or 15° inclination.

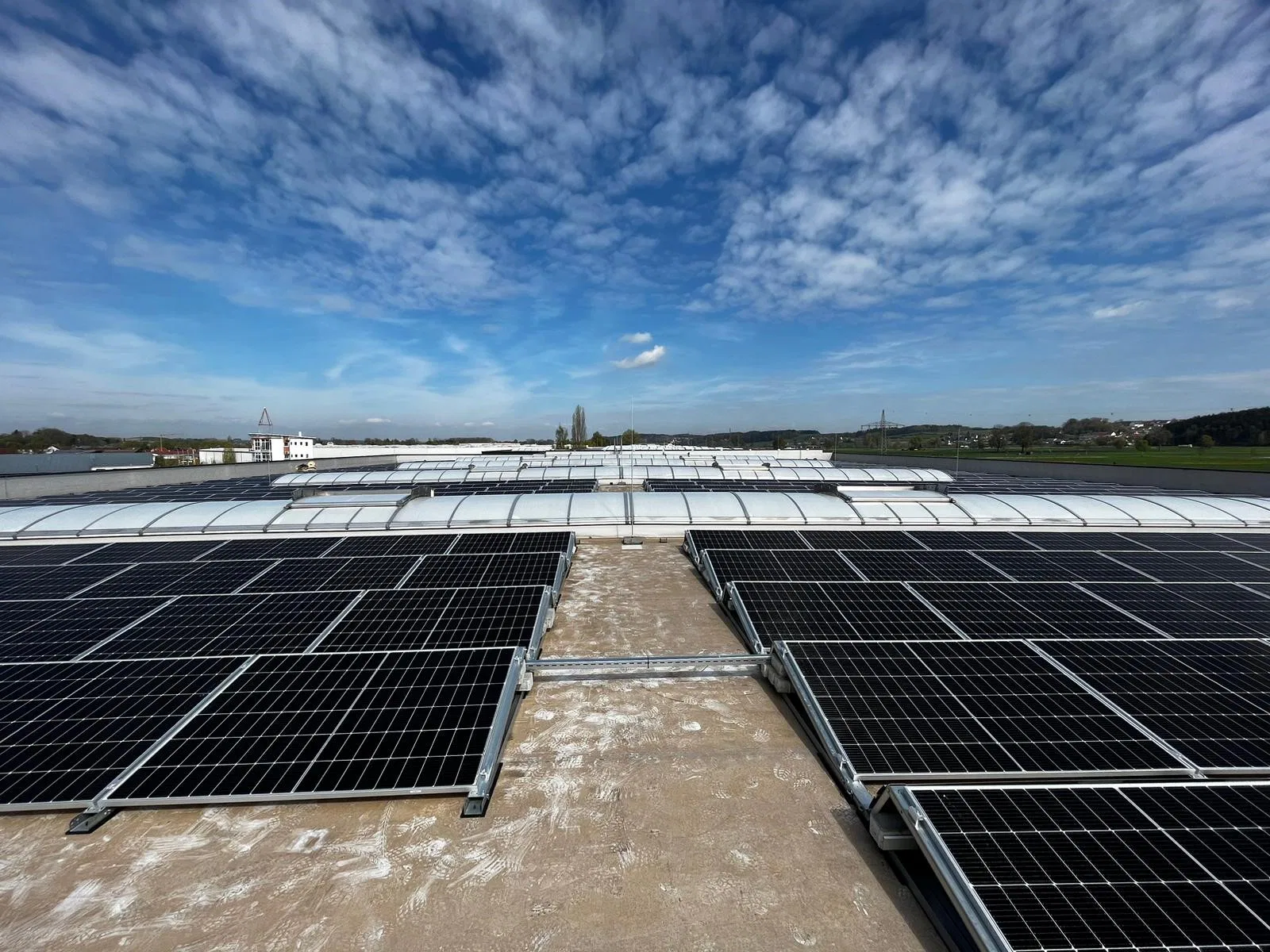

Installation of the photovoltaic flat roof mounting system

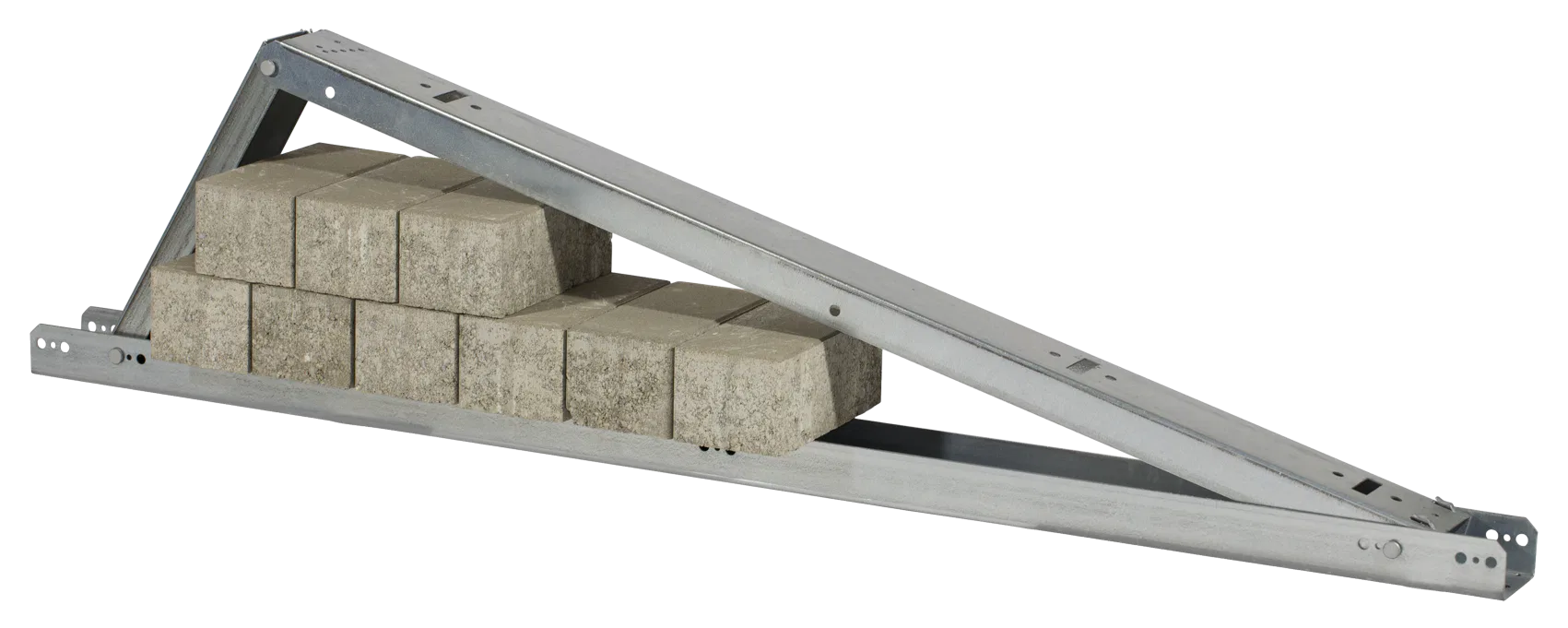

Installation is carried out on roof pitches ≤ 3° without roof penetration, only with weighting.
For bitumen flat roofs with a pitch of up to 10°, the TRITON flat roof system can be installed with mechanical anti-slip protection. To ensure a low-ballast overall system, the TRITON flat roof system was not only tested for stability in a WtG-approved boundary layer wind tunnel, but also optimized aerodynamically. This means that even roofs with a low load reserve can be used sensibly for photovoltaics.
A lightning current-capable version of the TRITON system in accordance with DIN EN 62305-3 is also available as an option.

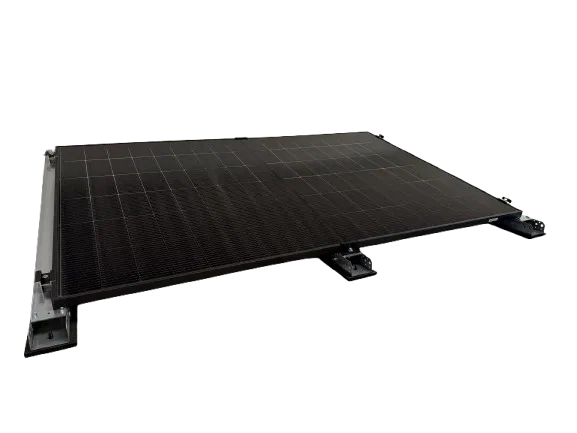

TRITON special features – High degree of pre-assembly

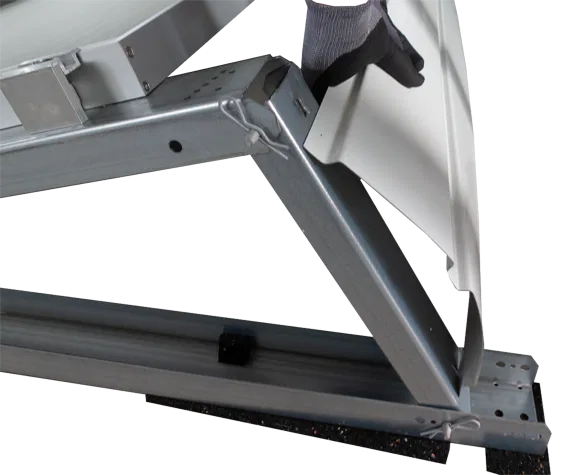

The high degree of pre-assembly and the unique, tool-free assembly with plug-in bolt connections are outstanding.
Chipless installation ensures that the roof cladding remains intact.
Thanks to the pre-configuration of the TRITON system, no time-consuming measuring and adjustment work is required.
Technical details of the photovoltaic flat roof mounting system
| SOUTH |
SOUTH |
SOUTH |
SOUTH |
OW |
OW |
|
| Variant | HZ 12° | HZ 15° | XL 12° | XL 15° | HZ (up to 1,060 mm module width) |
XL (from 1,061 module width) |
| Elevation length | 1,373 mm | 1,373 mm | 1,473 mm | 1,473 mm | 2,285 mm | 2,461 mm |
| Row foot spacing | from 1,397 mm | from 1,397 mm | from 1,497 mm | from 1,497 mm | 2,357 mm | 2,533 mm |
| Shading distance | 1,397|1,445|1,517|1,637 mm | 1,497|1,545|1,617|1,737 mm | – | – | ||
| Distance to the roof cladding | 102 mm | 102 mm | 102 mm | 102 mm | approx. 102 mm | approx. 102 mm |
| Max. Overall height |
287 mm | 342 mm | 306 mm | 365 mm | 287 mm | 306 mm |
| Dead weight | 4.7 kg/m² | 4.8 kg/m² | 4.7 kg/m² | 4.8 kg/m² | approx. 3.4 kg/m² | approx. 3.4 kg/m² |
Suitable for any flat roof
In addition to the high degree of pre-assembly and tool-free installation, TRITON is suitable for all roof types.
So that we can assemble the photovoltaic mounting system correctly for you.
You can find out more on the following Triton subpages:
Bitumen & foil flat roof
Gravel & green flat roof
Flat roof foils
Application area
all flat roofs such as foil, bitumen, gravel, green or trapezoidal sheet metal roofs
System information
South elevation:
Inclination: 12° or 15°
Weight: approx. 4.7-4.8 kg/m²

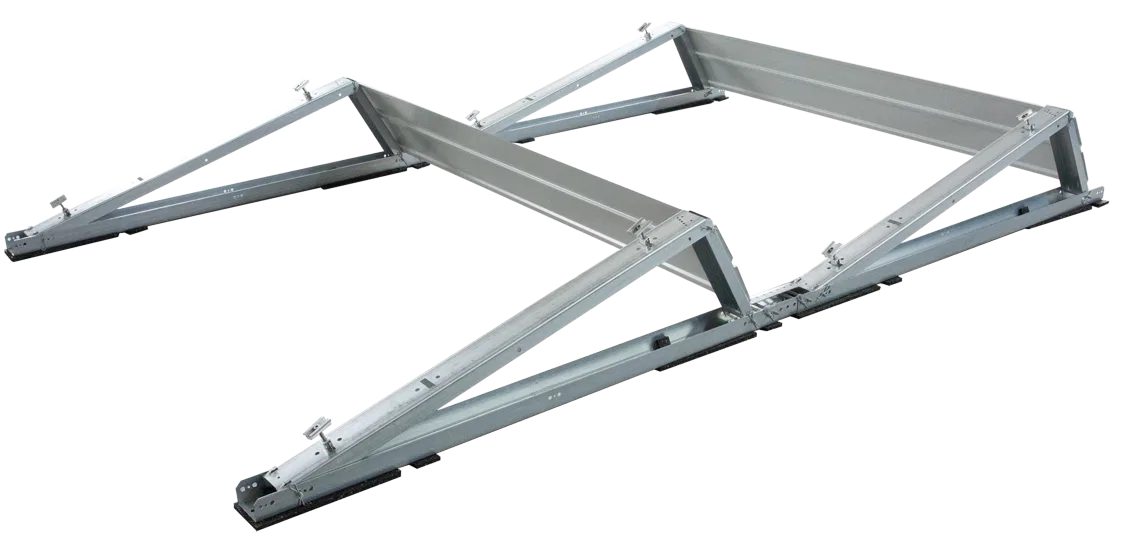

East-west elevation:
Inclination: 12°
Weight: approx. 3.4 kg/m²
Mounting
Outstanding, quick installation thanks to innovative plug-in system

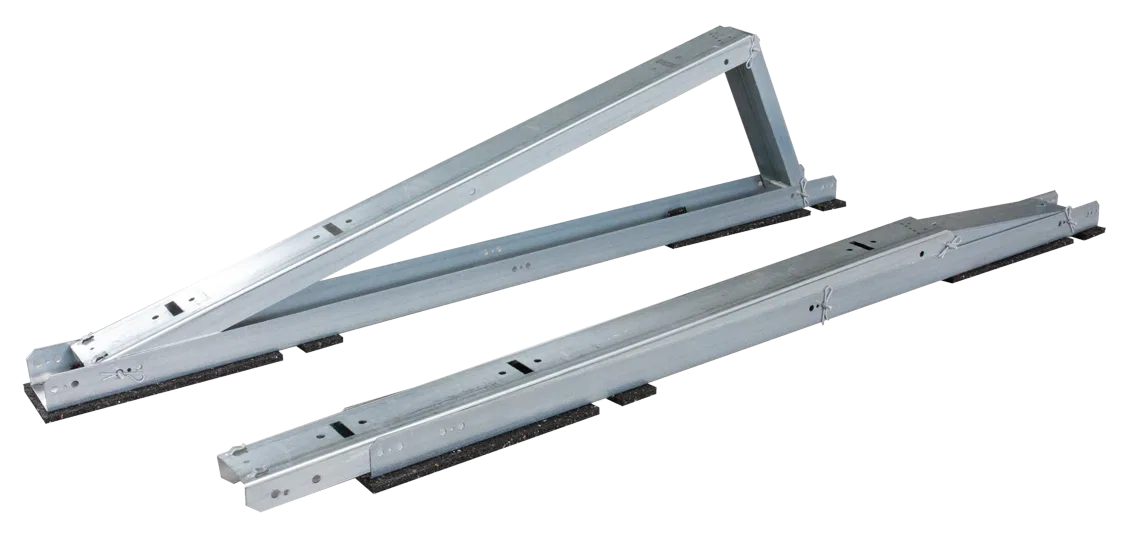

Already pre-assembled
Stability
Specific wind suction calculations
Load assumption according to Eurocode 1
If you are interested in PV flat roof elevations and are looking for a professional partner for your projects, please contact us.
