Innovative substructure for trapezoidal roofs
PV mounting system
Trapezoidal roof
CHRONOS Trapez allows maximum
flexibility when installing photovoltaics
on pitched trapezoidal roofs.
Trapezoidal sheet metal is an attractive option for pitched roofing for industrial halls, warehouses or agricultural buildings. In addition to its long service life of 30 to 50 years, it is characterized by its cost-effective purchase and quick installation. With its low weight, it hardly puts any strain on the roof substructure. It is also low-maintenance and insensitive to soiling.
It is just as easy to install photovoltaics on a pitched roof with trapezoidal sheet metal roofing. In most cases, lightweight short rails are fastened directly to the raised beads using appropriate screws. Self-tapping screws that are gentle on the roof skin, appropriate EPDM seals and a sufficient distance between the short rails and the roof cladding are important to ensure good rear ventilation of the modules.
Maximum flexibility thanks to different rail lengths and universal hole pattern
Improved rear ventilation of the modules with very flat trapezoidal sheet metal profiles
PV elevation for trapezoidal roofs with a low pitch
Depending on the module orientation, installation in or across the raised bead run
CHRONOS trapeze. Flexible short pieces.

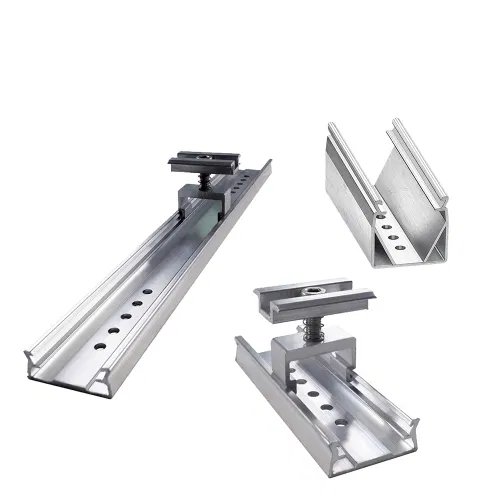

With the CHRONOS trapezoidal short pieces, PV systems are mounted quickly and easily on pitched trapezoidal roofs made of steel and aluminum. They are attached using self-tapping thin sheet metal screws to protect the roof skin, while EPDM seals provide a seal between the trapezoidal sheet and the short rail.
For maximum flexibility, the CHRONOS Trapez short pieces are available in three different lengths and can therefore be installed both in and across the corrugation. With very flat trapezoidal sheet metal profiles, CHRONOS Trapez beta ensures better rear ventilation of the modules with a greater distance to the roof surface. This product variant also provides more space for module plug-in connections.
Are you planning a PV project on a trapezoidal roof and looking for a professional partner? Get in touch with us!
CHRONOS trapezoid. LV text.
Do you have any questions about the CHRONOS trapezoidal mounting system for pitched trapezoidal roofs? Write to us!
CHRONOS trapezoidal PV mounting system.
Added value through photovoltaics on trapezoidal roofs
- Ecological upgrading of the property by installing a photovoltaic system on a trapezoidal roof
- Advantages in energy balance certification
- Rapid amortization through a combination of self-consumption and feed-in remuneration
- Reducing the temperature inside the building
- Use of already sealed surfaces for sustainable energy generation
- Reducing energy costs and increasing the degree of self-sufficiency
Technical information CHRONOS Trapeze
- Short rails for mounting photovoltaics on all types of trapezoidal sheet metal roofs
- Minimum thickness steel 0.5 mm, minimum thickness aluminum 0.6 mm
- Minimum width of the high bead 15 mm
- Distance between module and high bead 16.6 mm, with CHRONOS beta 45 mm
- Module fastening by clicking in the pre-assembled CHRONOS center clamp set
- For all framed modules from 29 to 51 mm frame height
Advantages of the CHRONOS trapezoidal PV mounting system
- Simple system structure for time-efficient and fast installation
- Flexibility thanks to different rail lengths and universal hole pattern
- Mounting in or across the high beading, depending on module orientation
- Gentle on the roof cladding thanks to non-cutting installation with self-tapping thin sheet metal screws
- UV and ozone-resistant EPDM seals between trapezoidal sheet and short rail
- Clicking in the modules with pre-assembled CHRONOS center terminal sets
